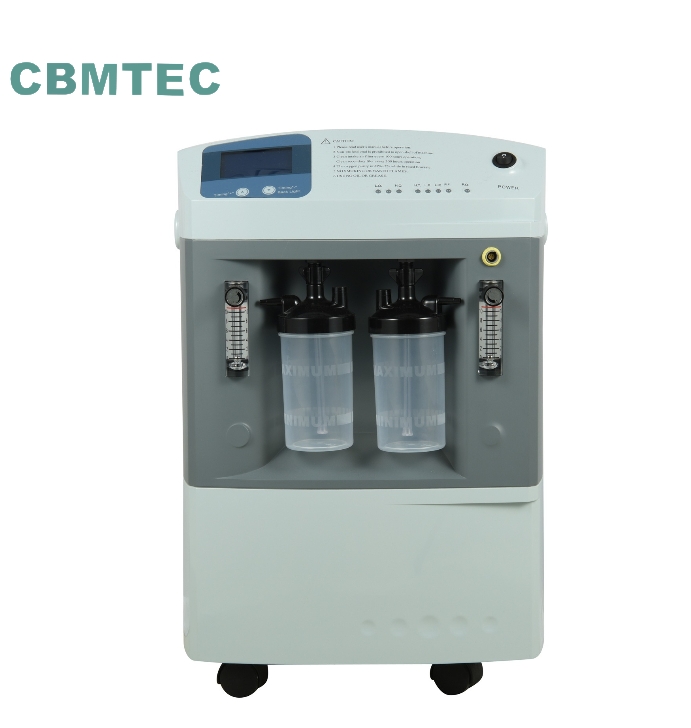

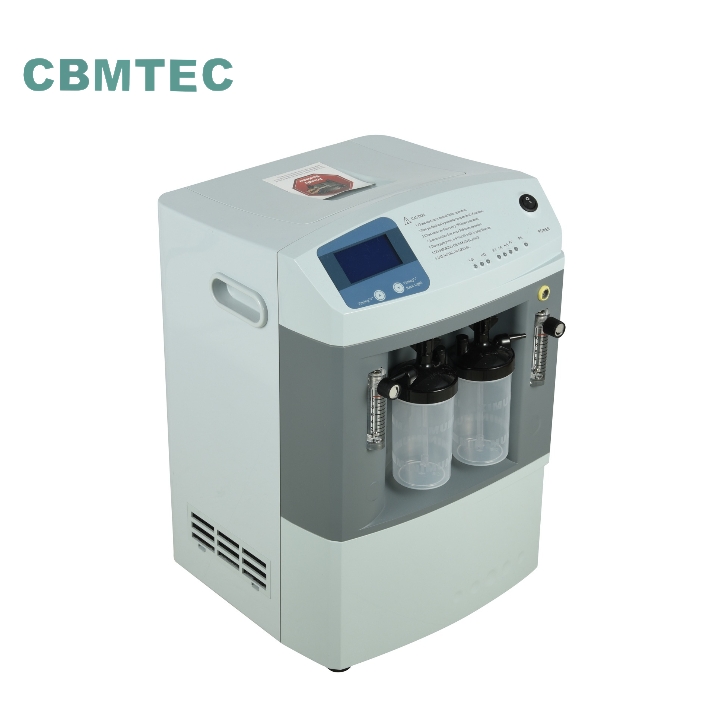

Ⅰ Product Description:
Oxygen generators are divided into two categories: industrial oxygen generator and civil oxygen generator. Civil oxygen generators are commonly used in medical, higher requirements for purity. Industrial oxygen generator generally required purity over 90%. In welding, chemical industry, water treatment, aquaculture and so on a wide range of fields has a very important role.
-1).The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity.
-2).Perfect process design and best use effect;
-3).Modular design is designed to save land area.
-4).The operation is simple, the performance is stable, the automation level is high, and it can be realized without operation.
-5)Reasonable internal components, uniform air distribution, and reduce the high speed impact of airflow;
-6)Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.
-7)It has many functions of fault diagnosis, alarm and automatic processing.
-8)Optional touch screen display, dew point detection, energy saving control, DCS communication and so on.
Ⅱ Specification:
Item |
Unit |
CBM-3L |
CBM-5L |
CBM-7L |
CBM-10L |
CBM-15L |
Oxygen output |
LPM |
3 |
5 |
7.5 |
10 |
15 |
Oxygen concentration |
% |
90%±3% |
||||
Air flow rate |
LPM |
36-45 |
60-75 |
90-115 |
150-200 |
180L/Min |
Pressure(inlet) |
Mpa |
0.14-0.18 |
0.14-0.18 |
0.15-0.2 |
0.18-0.25 |
0.35 |
Pressure(outlet) |
Mpa |
0.06-0.08 |
||||
Temperature |
ºC |
indoor temperature |
||||
Relative humidity |
% |
≤ 70%±10% |
||||
Noise |
Db |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
Dimension |
mm |
200×290 |
200×410 |
200×470 |
200×500 |
200×880 |
Net weight |
kg |
14 |
17.85 |
19.1 |
21.3 |
32.5 |
