Regulators

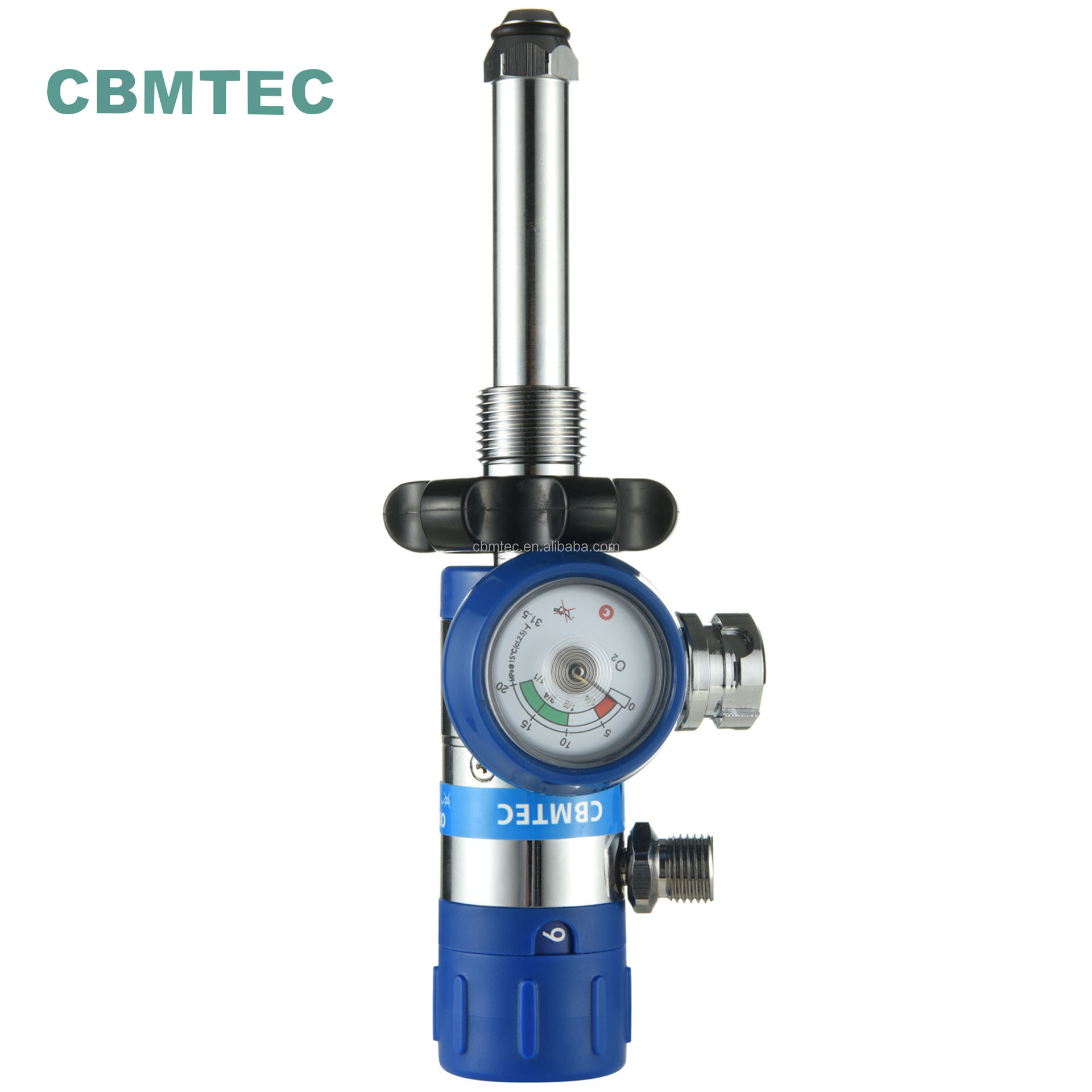

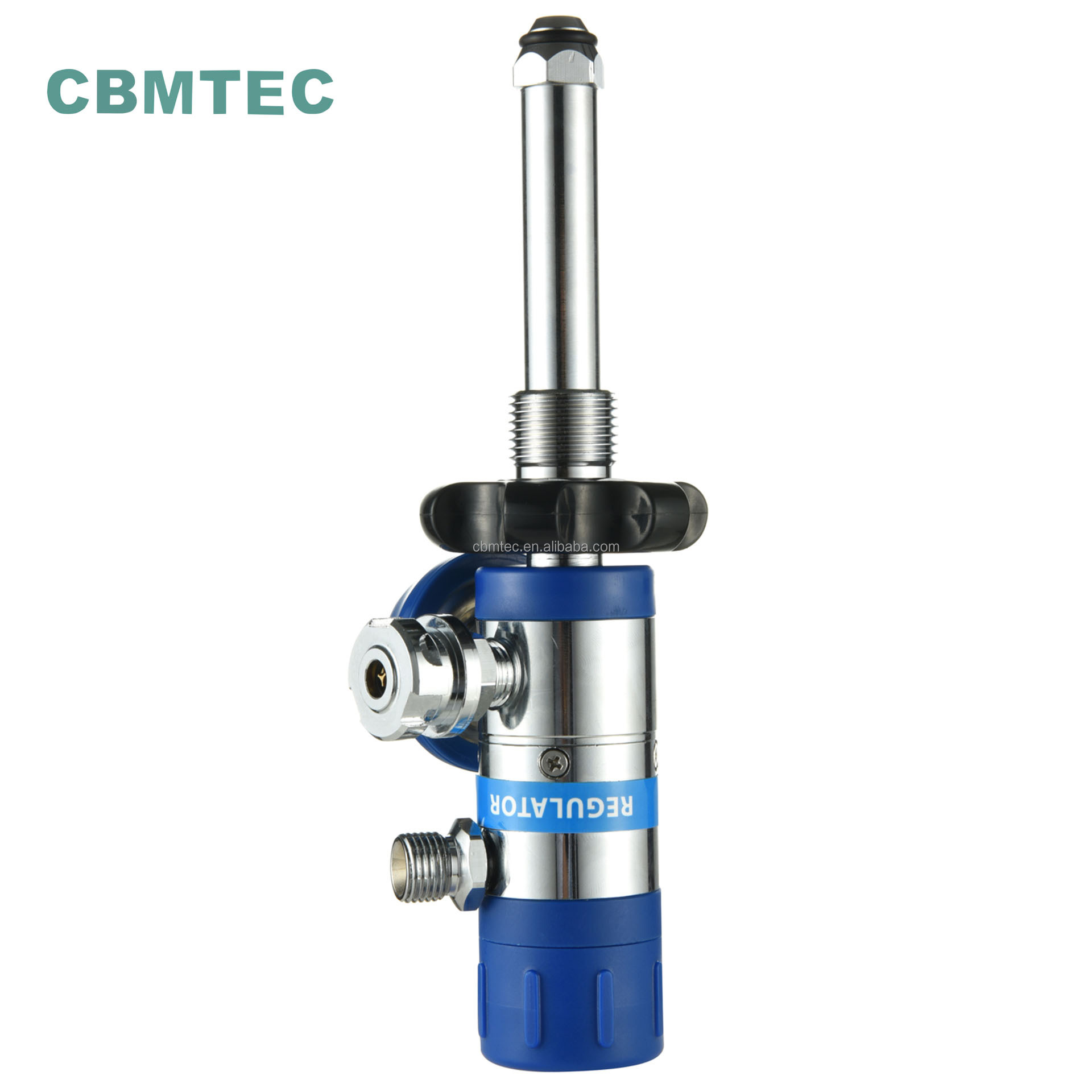

Bull-nose Style Oxygen Regulators

Gas:Oxygen
Material：Aluminum
Certificate: CE, ISO
Brand:CBMTEC
Description: Oxygen Therapy regulators are at work in hospital, clinics, home care worldwide emergency units & etc. For true reading flowmeter must always be vertical.
INQUIRY EMAIL

*Referenced main specs on Click-Style Oxygen Regulators:

Model Number	Length	Inlet Connection	Outlet Connection	Packaging
YR-MT540-85	85mm	CGA540	DISS Outlet/Barb Outletφ8mm	20PCS/CTN 40.515.535.5 G.W./N.W.:9/8Kg
YR-MT540-2CV	85mm	CGA540	DISS Outlet/Barb Outletφ8mm/G3/4
YR-MT540-G3/4	85mm	CGA540	DISS Outlet/Barb Outlet,G3/4
YR-MT540-S	85mm	CGA540	DISS Outlet/Barb Outlet,G3/4
YR-MT870-115	115mm	CGA870 pin index type	DISS Outlet/Barb Outletφ8mm
YR-MT870-120	120mm	CGA870 pin index type	DISS Outlet/Barb Outletφ8mm
YR-MT870-125	125mm	CGA870 pin index type	DISS Outlet/Barb Outletφ8mm
YR-MT870-165	165mm	CGA870 pin index type	DISS Outlet/Barb Outletφ8mm

*Bull-nose Type Oxygen Regulator for Oxygen Therapy System:
-1)Body Style: CGA540;
-2)Material: Lightweight aluminum alloy body;
-3)Outlet: BARB/DISS outlet;
-4)Flow rate: 0-15lpm or you prefer;
-5)Color: Green or you prefer;
-6)(DISS)Output pressure: 50PSI;
-7)Diameter: 1 3/8 Nominal;
-8)Length: 4 3/5 approximately;
-9)Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-10)Packaging: 20PCS/CTN.

*Features:
Click-style Bullnose-style,handwheel type. A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s).
*Notes:
A). A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s). The flow rates can be: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm(optional);
B). Each can be anodized to green, red, silver, black, gold, brown, blue, purple, pls tell us your prefer color when you make an RFQ.
C). Our branch factory can manufacture various styles of medical oxygen regulators. We can offer medical oxygen system products based on our potential partners' requirements
